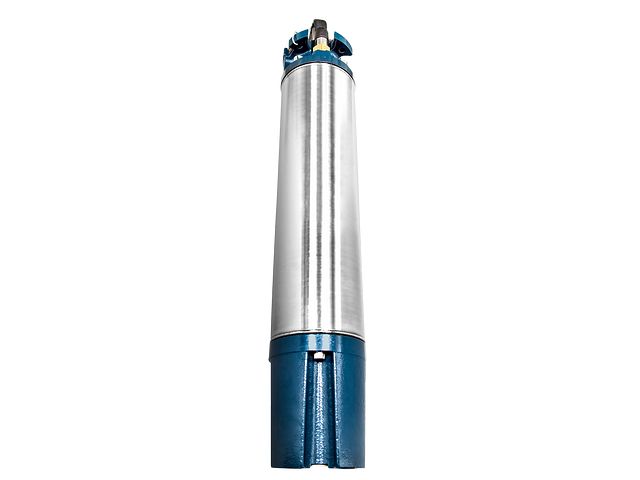

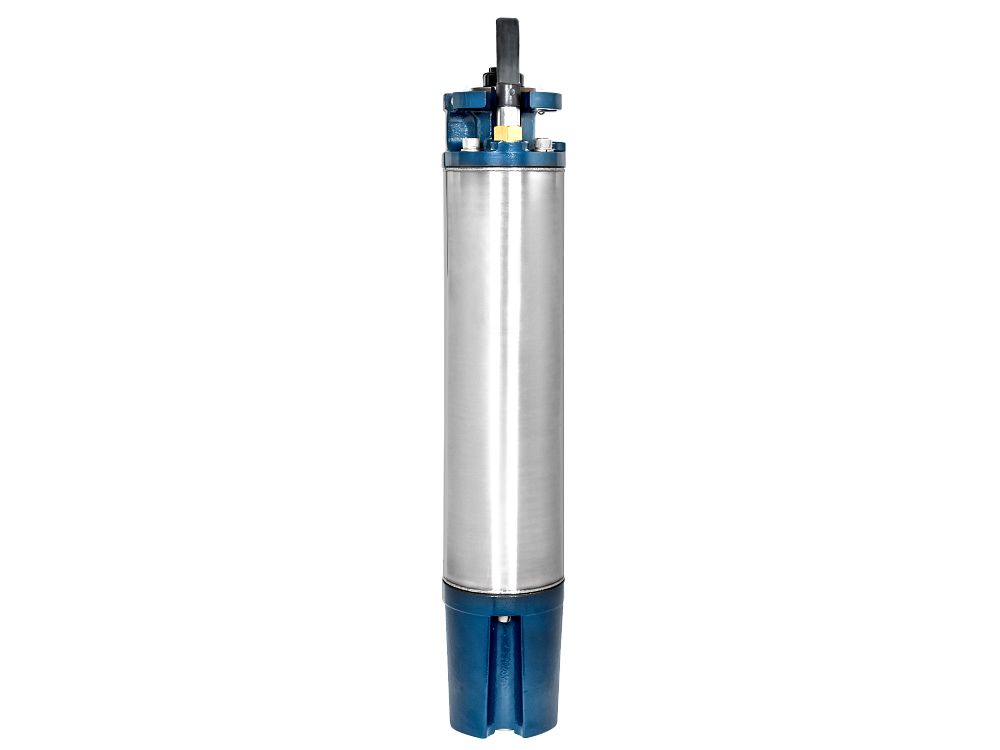

6-Inch Encapsulated MagForce™ High Efficiency Motor

Franklin’s 6-Inch Encapsulated MagForce High Efficiency submersible motor is an ultra‑efficient permanent magnet solution designed to cut energy costs and boost performance in demanding deep‑well applications.

• GROUNDBREAKING efficiency with a permanent magnet design delivering up to 92% motor efficiency, 8–12 points higher than standard induction motors.

• Up to 14% reduction in electricity consumption compared to traditional 6-inch induction submersible motors, helping lower operating costs.

• Ideal for long-run applications including groundwater remediation, municipal and utility water supply, drainage level control, construction and mine dewatering, industrial livestock operations, and geothermal HVAC well supply.

• Smaller, lighter footprint than conventional 6-inch induction motors, making handling and installation easier for contractors.

• Intuitive startup and optimized protection when paired with a Franklin Electric variable frequency drive for a complete high-efficiency pumping system.

• Designed as a fully integrated system so motor and drive are engineered to work together for maximum reliability and compatibility.

• Sand Fighter models include Franklin’s robust Sand Fighter sealing system for added durability in sandy or abrasive wells.

• Stainless steel shell, sand slinger, and Kingsbury-type water-lubricated thrust bearing (3,500–6,000 lb ratings depending on horsepower) for long service life.

• 6-inch double-flange NEMA mounting, hermetically sealed windings, maximum temperature winding wire to NEMA class 200, and pressure-equalizing diaphragm for dependable operation.

• Rated for 460 V, three-phase, 120 Hz operation with motor ingress protection IP68, insulation class F, vertical or horizontal installation, and NSF/ANSI 61 certification for potable water use.
